Highest Configuration 6 Heads SMT pick and place machine Robot
3 Pieces Auto PCB Conveyor, Double Y axis, 6 Heads 50 Feeders, Servo Motor, Automatic Nozzle Change, Higher accuracy CPK test passed, 0201 support, IPC9850: 13400CPH. CPK≥1.0 (X Y)
Medium SMT Production line, For PCBA SMT assembly line
This is an updated model CHM-751 from Charmhigh with economic price, it has high configuration and higher preicision, if you want a high precision machine with a economic price, this one is your best choice! This model has 3 pieces auto PCB conveyor, it can connect with SMT conveyor desk and reflow oven, delivery PCB into reflow oven.
Introduction:
1. Model number: CHM-751
2. Brand: Charmhigh
3. Main configuration: High precision CPK test passed + 0201 support + Auto PCB conveyor + CPK test passed + Auto nozzle change + Max speed 18400 CPH + 6 heads 50 feeders + double Y axis + Ball screw with + Servor motor + 9 cameras + Yamaha feeders + intelligent software
4. Max PCB area: 400*350mm
5. Component: 0201/0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc. (resistor/capacitor/diode/triode/LED/IC, etc.)
6. Dimension: 1280mm(L)×1190mm(W)×1470mm(H)
7. Lead time: 5-7 working days
8. Delivery: by air, by sea, or pick up from our factory, or ship to shipping agent
9. Payment method: wire transfer (T/T); credit card; W/U
10. Packing: plywood box
11. HS code: 8479.89.62.00 (Pick and place machine)
CHM-751 catalog download: CHM-751 - Catalog.pdf
Highlight:
1. Thermal Compensation
2. Support CPK test, 0201 perfect mounting

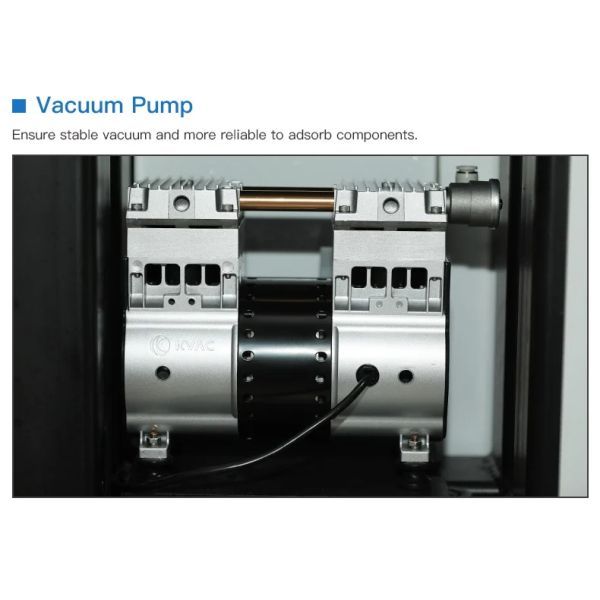

3. Built-in Vacuum Pump
4. Automatic nozzle change (19 sets nozzle library)
5. PCB Support Device

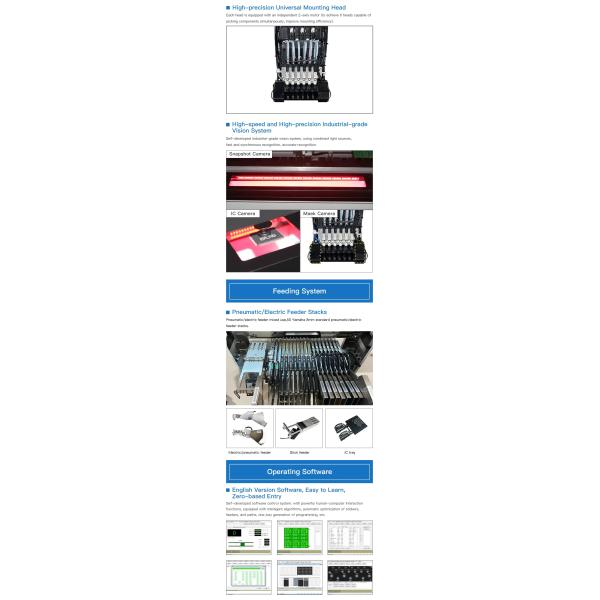

6. 6 head + 50 Yamaha feeder stacks + 9 cameras
7. Double Y axis with grinding screw, y axis with servo motors
For more machine features, please consult our account manager
| CHM-751 Specifications |
| Dimensions | 1280mm(L)×1190mm(W)×1470mm(H) |
| Weight | 670kg |
| Power Supply | AC220V (50Hz, single phase), 2.8kW |
| Air Supply | 0.5MPa ~0.7MPa |
| Vacuum Generation | Built-in vacuum pump |
| Mounting Head Quantity | 6 heads |
| Mounting Speed | 18400CPH (optimal) ; IPC9850: 13400CPH |
| Mounting Accuracy | (XY)±0.05mm, CPK≥1.0 |
| Component Height | 12mm |
| Component Type | 0201/0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc.
(resistor/capacitor/diode/triode/LED/IC, etc.) |
| PCB Thickness | 0.6mm~3.5mm |
| PCB Size | 400mm(L)×350mm(W) |
| PCB Conveying | 3-section-rail automatic conveying, PCB support |
| Nozzle Change | Automatic nozzle change (19-hole nozzle library) |
| Control System | Built-in industrial computer (Windows 7) equipped with monitor, keyboard, and mouse |
| Drive System | X&Y axis driven by servo motors (Y axis by double motors);
adopting flexible S-curve acceleration and deceleration |
| Transmission System | Ground Ball screw + linear guide (Y axis with double screws) |
| Feeding System | 50 Yamaha 8mm standard pneumatic / electric feeder stacks
(also suitable for IC tray and stick feeder) |
| Vision System | Snapshot camera×6 (component size applicable: 16mm×16mm);
IC camera×1 (component size applicable: 36mm×36mm);
Mark camera×2 |
Service & Warranty:
The complete machine has a warranty period of 1 year from the time of purchase and lifetime service.
We always provide spare parts of machine, factory reliable direct supply.
We provide online Q/A and troubleshooting support and technical advice service.
Provide one to one after-sale service. Each machine 100% tested well before ship out.
