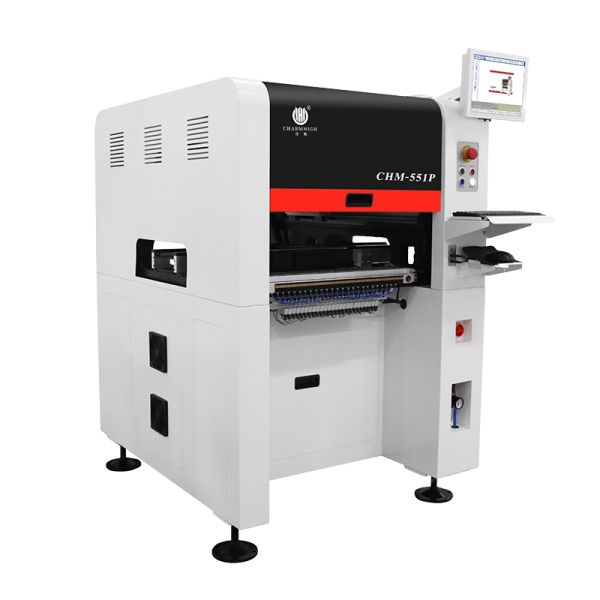

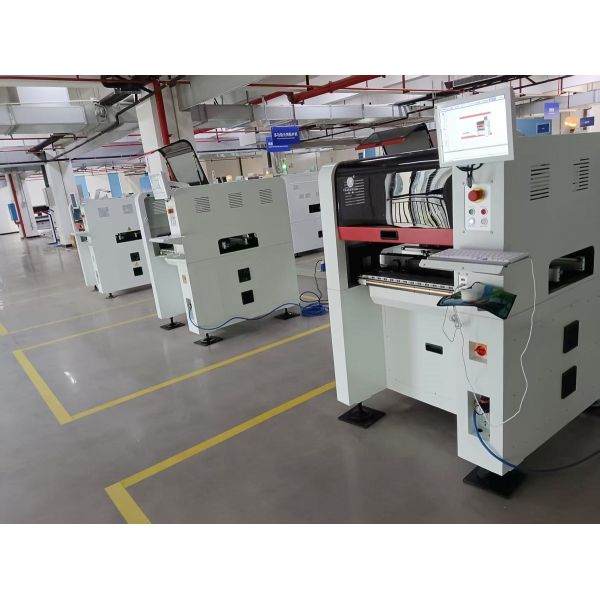

Charmhigh 551P SMD Pick and Place Machine Prototyping Small Batch Production CPK≥1.0
Updated Genius 4 heads Model CHM-551P SMD pick and place machine
High precision cast-iron structure with automatic PCB conveyor SMT pick and place robot.
For Small Batch Production & In-house Researching & Prototyping
0201, 144 pins IC supported. CPK Test support. Economic high-end SMT Chip Mounter with high stability.
Product Introduction
CHM-551P is a 4-head high-precision general-purpose automatic SMT pick and place machine with high-end configuration mechanism and excellent performance at an affordable price. Designed for R&D proofing and SMT small to medium-sized production, this machine delivers professional-grade PCB assembly capabilities while quickly recovering investment costs. The CHM-551P represents the best budget SMT machine for 2026.
This next-generation 4-head SMT pick and place machine is engineered for high-precision SMT assembly, supporting components from 0201 to 5050, BGA, 144 pins IC, including LEDs, ICs, and odd-form parts. Compatible with both electric and pneumatic feeders in 8mm, 12mm, 16mm, 24mm, 32mm and 44mm widths.
Built with a heavy-duty cast-iron frame, this upgraded model delivers superior structural stability, reduced vibration, and significantly improved placement accuracy and speed compared to previous versions.
Applications
- Small-to-medium batch PCB assembly
- LED strip and bulb manufacturing
- Electronics contract manufacturing (EMS)
- R&D prototyping
- Educational institutions
- Growing SMT production lines
Key Features
- Support CPK test
- Automatic nozzle change (13 sets nozzle library)
- Thermal Compensation
- Automatic conveying
- Optimal speed: 14400 CPH
- Cast-iron construction
CHM-551P Specifications
| Dimensions | 1020mm(L) x 1180mm(W) x 1450mm(H) |
| Weight | 556kg |
| Power Supply | AC220V (50Hz, single phase) 1.5kw (average power 350w) |
| Air Supply | 0.5MPa ~0.7MPa |
| Vacuum Generation | Built-in vacuum pump |
| Mounting Head Quantity | 4 heads |
| Mounting Speed | 14400CPH (optimal) |
| Mounting Accuracy | (XY)±0.035mm; CPK≥1.0 |
| Component Height | 12mm |
| Component Type | 0201/0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc. (resistor/capacitor/diode/triode/LED/IC, etc.) 0201 to larger component 30*30mm size |
| PCB Thickness | 0.6mm~3.5mm |
| PCB Size | 350mm(L)x270mm(W) (Standard); 600mm(L)x350mm(W) (Optional) |
| Nozzle Change | Automatic nozzle change (13-hole nozzle library) |
| Control System | Linux system, equipped with monitor, keyboard, and mouse |
| Drive System | X&Y axis driven by servo motors; adopting flexible S-curve acceleration and deceleration |
| Transmission System | Ball screw + linear guide |
| Feeding System | 50 Yamaha 8mm standard pneumatic/electric feeder stacks (also suitable for IC tray and stick feeder) |
| Vision System | Snapshot camerax4 (component size applicable: 14mm*14mm); IC camerax1 (component size applicable: 30mm*30mm); Mark camerax2 |
Feeder Compatibility
Working with universal standard Yamaha pneumatic feeders & electric feeders (purchase separately):
Options include:
- 8mm/12mm/16mm/24mm/32mm/44mm electric feeder
- 8x4mm/12mm/16mm/24mm/32mm/44mm pneumatic feeder
- Vibration feeder
Charmhigh SMT, factory supply, prompt delivery.
Charmhigh, top Chinese brand.
Parts List
| Item | Quantity | Item | Quantity |
| Pick and place machine | 1 | Tweezer | 1 |
| Nozzles | 8 | Inner Hexagon Spanner | 1 |
| Tool box | 1 | Lubricating oil | 1 |
| Warranty Card | 1 | Filter | 4 |
| User Manual | 1 | Quick connector | 1 |
| Test Report | 1 | Mouse Pad | 1 |
| Brush | 1 | Power Cable | 1 |
Why Choose the Upgraded CHM-551P?
With its cast-iron construction, vertical space-saving design, and enhanced accuracy, the CHM-551P offers industrial-grade SMT placement performance at a competitive price point. 2-4 day lead time with in-stock availability.
Please note:
The pick and place machine is complete set with all accessories included in the package, machine ready to use!
The only thing you need to prepare is an external air compressor (supplying air for pneumatic feeders).
Please purchase this machine with confidence.
Service & Warranty
The complete machine has a warranty period of 1 year from the time of purchase and lifetime service.
We always provide spare parts of machine, factory direct supply with guarantee.
We provide online Q/A and troubleshooting support and technical advice service.
We provide one to one after-sale service. Each machine 100% tested well before ship out.
